Product Advantages

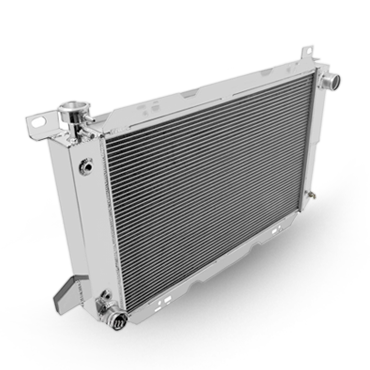

Powerful cooling system

Flow-optimized piping

Efficient drainage - high pressure model

Technical specifications

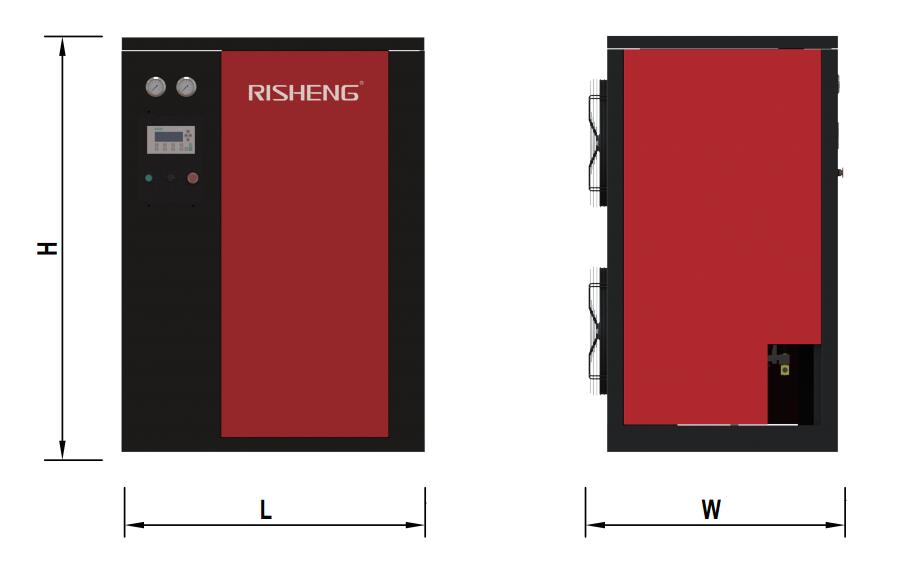

model number	treatment capacity			caliber	dimensions
	treatment capacity			caliber	mm			inch
	Nm³/min	l/s	cfm	G / PN	length	width	height	length	width	height
RSLF-12-HP	1.2	20	43	1/2" M	600	310	500	24	13	20
RSLF-15-HP	1.5	25	53	1/2" M	600	310	500	24	13	20
RSLF-18-HP	1.8	30	64	1/2" M	600	310	500	24	13	20
RSLF-24-HP	2.4	40	85	3/4" M	750	360	550	30	15	22
RSLF-30-HP	3	50	106	3/4" M	750	360	550	30	15	22
RSLF-36-HP	3.6	60	128	3/4" M	750	360	550	30	15	22
RSLF-40-HP	4	67	142	3/4" M	750	360	550	30	15	22
RSLF-60-HP	6	109	230	1-1/4" M	750	550	880	30	22	35
RSLF-80-HP	8	147	311	1-1/4" M	750	550	880	30	22	35
RSLF-100-HP	10	184	389	1-1/4" M	750	550	880	30	22	35
RSLF-120-HP	12	217	460	1-1/4" M	750	550	880	30	22	35
RSLF-150-HP	15	284	601	1-1/4" M	1000	800	1000	40	32	40
RSLF-200-HP	20	384	813	1-1/4" M	1000	800	1000	40	32	40
RSLF-250-HP	25	450	954	2-1/2" M	1100	900	1550	44	36	62
RSLF-300-HP	30	550	1166	2-1/2" M	1100	900	1550	44	36	62
RSLF-350-HP	35	617	1307	2-1/2" M	1100	900	1550	44	36	62
RSLF-400-HP	40	750	1589	2-1/2" M	1100	900	1550	44	36	62
RSLF-500-HP	50	917	1943	2-1/2" M	1100	900	1550	44	36	62
RSLF-600-HP	60	1084	2296	DN80	1450	1130	1650	58	45	65
RSLF-700-HP	70	1217	2578	DN80	1450	1130	1650	58	45	65
RSLF-800-HP	80	1334	2825	DN80	1450	1130	1650	58	45	65

Actual capacity （m³/min） = Nominal capacity × KA × KB × KC

working pressure

（KA）

Mpag

2.0

2.5

3.0

3.5

4.0

4.5

psig

290

363

435

508

580

653

CFP

0.93

0.96

0.97

0.99

1.00

1.01

inlet temp

（KB）

℃

℉

100

110

120

130

140

CFT

1.27

1.18

1.00

0.87

0.76

0.68

0.61

ambient

temperature

（KC）

℃

℉

100

110

120

122

CFT

1.15

1.12

1.08

1.04

1.00

0.95

0.90

0.89

Rated condition

Working pressure： 4.0Mpag / 580psig
Inlet Temp： 38°C / 100 °F
Ambient temperature： 38 °C / 100 °F

Scope of work

Maximum working pressure： 4.5Mpag / 653psig
Maximum inlet temperature： 60°C / 140 °F
Maximum ambient temperature： 50°C / 122 °F
Minimum ambient temperature：5°C / 41 °F

Available Options

Different power supplies
Water-cooled models 150 and above
