Product Advantages

Rugged and durable

energy conservation and environmental protection

safe and reliable

Technical specifications

model number

treatment capacity

caliber

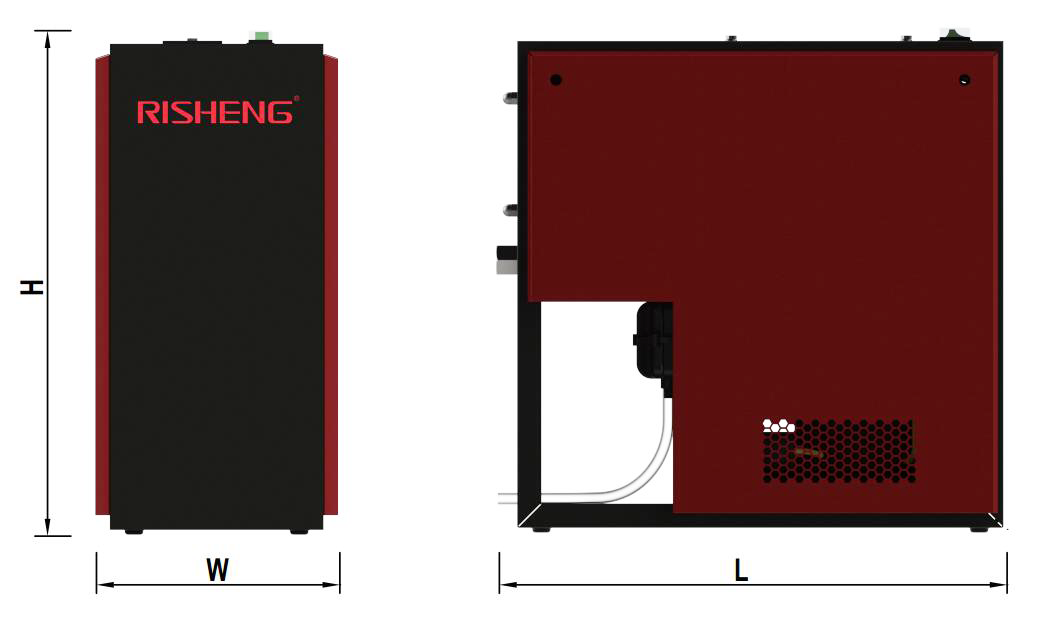

sizes

mm inch
Nm³/min l/s cfm G / PN length wide high length wide high
RSLF-06-SSD 0.6 10 22 1/2" M 500 250 500 20 10 20
RSLF-09-SSD 0.9 15 32 1/2" M 500 250 500 20 10 20
RSLF-12-SSD 1.2 20 43 1/2" M 600 310 500 24 13 20
RSLF-15-SSD 1.5 25 53 1/2" M 600 310 500 24 13 20
RSLF-18-SSD 1.8 30 64 1/2" M 600 310 500 24 13 20
RSLF-24-SSD 2.4 40 85 3/4" M 750 360 550 30 15 22
RSLF-30-SSD 3 50 106 3/4" M 750 360 550 30 15 22
RSLF-36-SSD 3.6 60 128 3/4" M 750 360 550 30 15 22
RSLF-40-SSD 4 67 142 3/4" M 750 360 550 30 15 22



Calibration factor
Actual capacity (m³/ min) = Rated capacity × KA × KB × K

work pressure (KA) Mpag 0.3 0.4 0.5 0.6 0.7 0.8 0.9
psig 44 58 73 87 102 116 131
CFP 0.76 0.86 0.92 0.93 1.00 1.04 1.08
Mpag 1.0 1.1 1.2 1.3 1.4 1.5 1.6
psig 145 160 174 189 203 218 232
CFP 1.11 1.15 1.18 1.22 1.25 1.28 1.30



inlet temperature (KB) 35 38 40 46 49 54 60
95 100 104 115 120 129 140
CFT 1.11 1.00 0.92 0.76 0.69 0.56 0.46



environmental temperature (KC) 25 30 35 38 40 45 50
77 86 95 100 104 113 122
CFT 1.15 1.10 1.02 1.00 0.89 0.79 0.69

rated condition

work pressure:0.7MPag / 100psig
inlet temperature: 38 ℃ / 100 ℉
environmental temperature:38℃/ 100℉

Scope of work

Maximum working pressure:1.6MPag / 232psig
Maximum inlet temperature:60℃/ 140℉
Maximum ambient temperature:50℃/ 122℉
Minimum ambient temperature:5℃/ 41℉

Available options

Higher work pressure
Different power supplies
Timed drain or zero loss consumption
