Product Advantages

Light Weight and Compact Design

Energy Conservation

Various Power Supply Options Available

Technical specifications

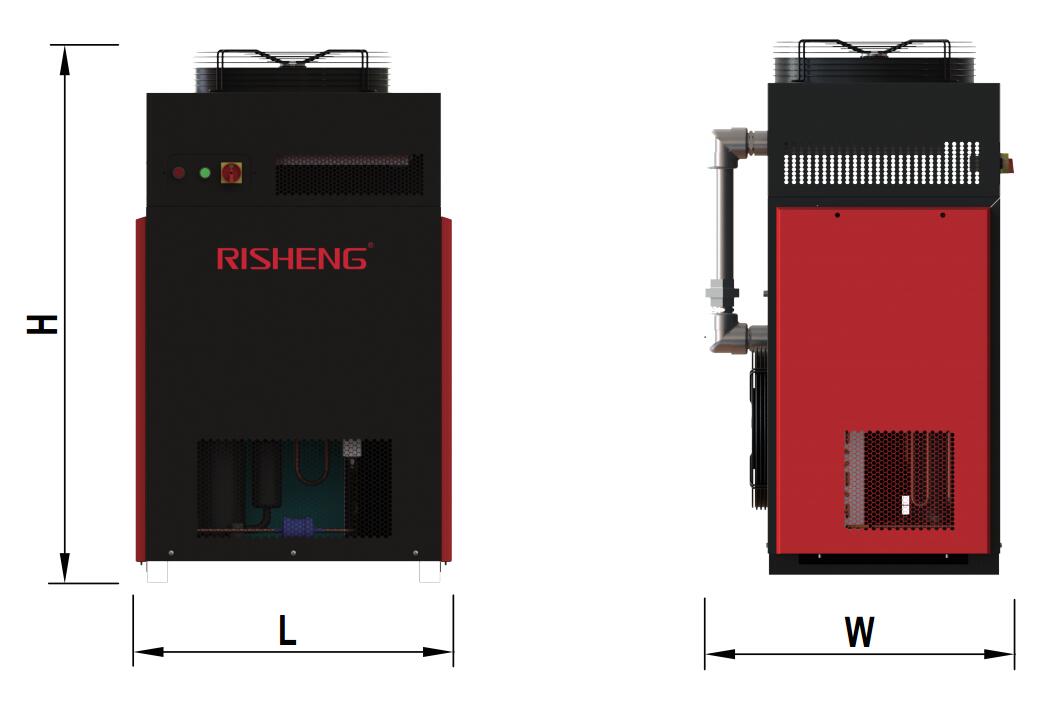

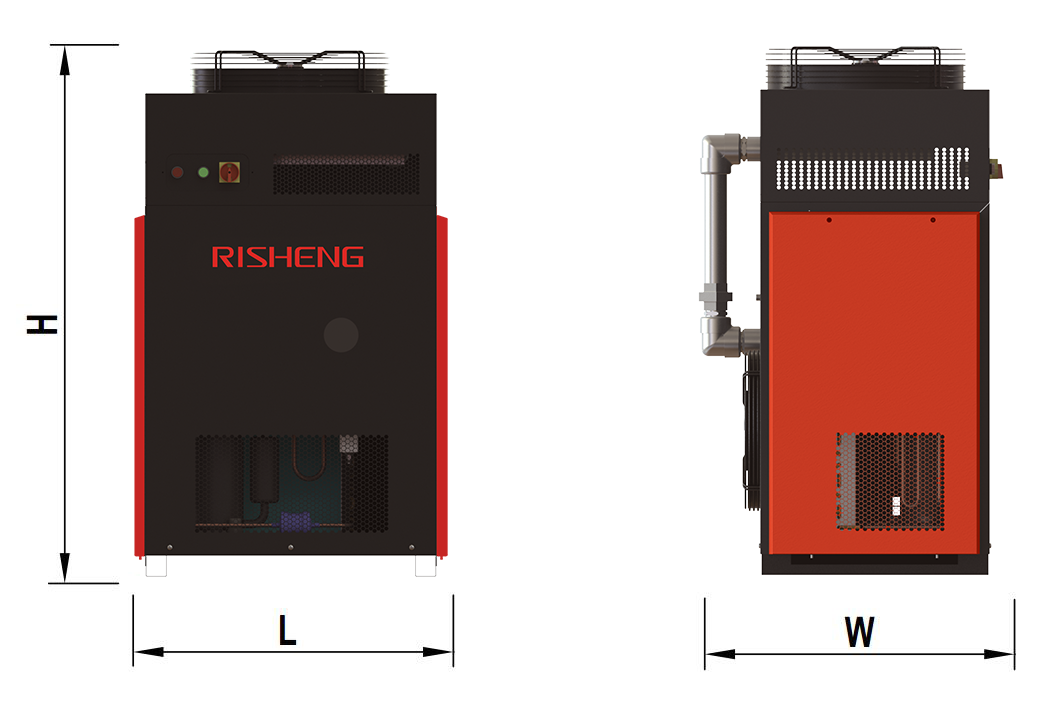

model number	treatment capacity			caliber	dimensions
	treatment capacity			caliber	mm			inch
	Nm³/min	l/s	cfm	G / PN	length	width	height	length	width	height
RSLF-24-HT	2.4	40	85	1" M	815	475	600	33	19	24
RSLF-30-HT	3	50	106	1" M	815	475	600	33	19	24
RSLF-60-HT	6	109	230	1-1/2" M	750	690	1240	30	28	49
RSLF-80-HT	8	147	311	1-1/2" M	750	690	1240	30	28	49
RSLF-100-HT	10	184	389	1-1/2" M	750	690	1240	30	28	49
RSLF-120-HT	12	217	460	2" M	1000	820	1450	40	33	58
RSLF-150-HT	15	284	601	2" M	1000	820	1450	40	33	58
RSLF-200-HT	22	384	813	2" M	1000	820	1450	40	33	58

Calibration factors

Actual capacity (m³/ min) = Rated capacity × KA × KB × KC

working pressure (KA)	Mpag	0.4	0.5	0.6	0.7	0.8	0.9
	psig	58	73	87	102	116	131
	CFP	0.86	0.92	0.93	1.00	1.04	1.08
	Mpag	1.0	1.1	1.2	1.3	1.4	1.5
	psig	145	160	174	189	203	218
	CFP	1.11	1.15	1.18	1.22	1.25	1.28

inlet temperature

(KB)

℃

℉

122

131

140

149

158

167

176

CFT

1.03

1.02

1.00

0.87

0.78

0.70

0.64

ambient

temperature

(KC)

℃

℉

100

104

113

122

CFT

1.15

1.10

1.02

1.00

0.89

0.79

0.69

Rated conditions

Working pressure ： 0.7MPag / 100psig
Inlet temperature ： 60 °C / 140 °F
Ambient temperature ： 38°C / 100 °F

Scope of work

Maximum working pressure ： 1.5MPag / 218psig
Maximum inlet temperature： 80 °C / 176 °F
Maximum ambient temperature ： 50°C / 122 °F
Minimum ambient temperature ： 5°C / 41 °F

Available options

Higher working pressure
Different power supplies
Timed oil leakage or zero loss oil leakage
Higher capacity
