Product Advantages

Significant energy-saving features

Add additional heater = with heater aid

Technical specifications

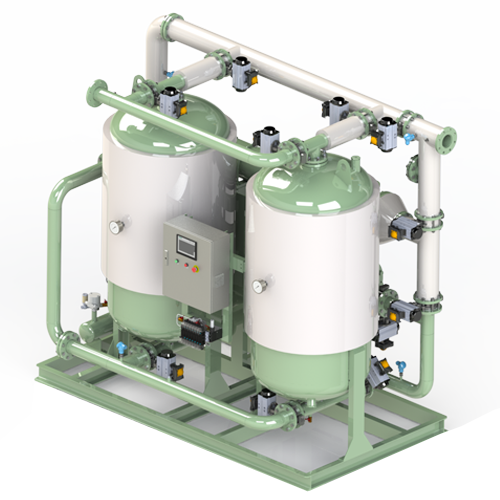

RSXY micro gas consumption compression heat regeneration dryer technical parameters (average gas consumption 1%~2%)
Equipped with oil-free screw compressor

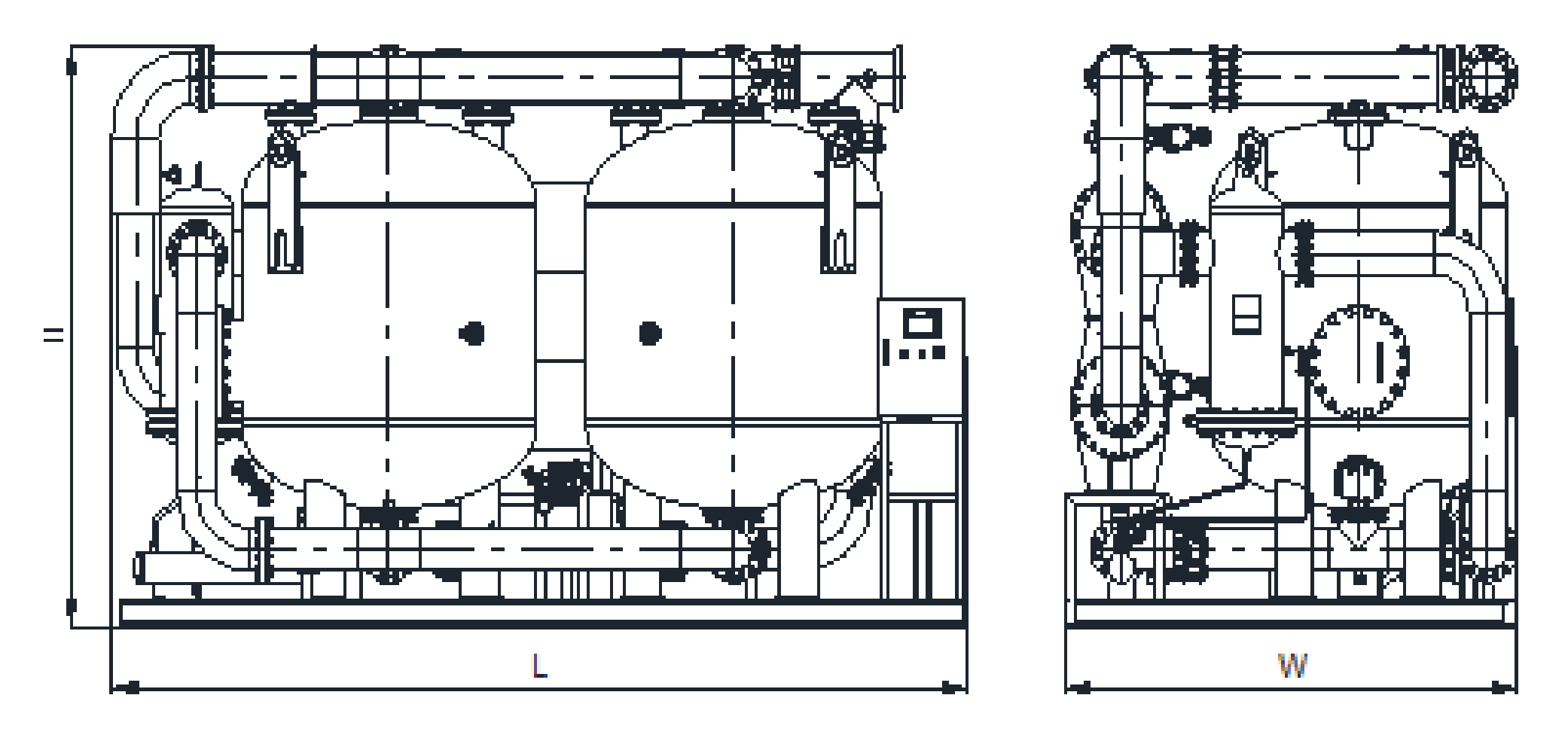

model number	Capacity			Post-filter (recommended)	Caliber (Air)	Caliber (cooling water)	Size
	Capacity			Post-filter (recommended)	Caliber (Air)	Caliber (cooling water)	mm			inch
	Nm³/min	l/s	cfm	1μm	G / PN	G / PN	length	wide	high	length	wide	high
RSXY-100	10	167	354	AO-060F	DN50	DN65	2402	1211	2389	95	48	95
RSXY-120	12	200	424	AO-060F	DN50	DN65	2402	1211	2389	95	48	95
RSXY-150	15	250	530	AO-070F	DN50	DN65	2402	1211	2389	95	48	95
RSXY-200	20	334	707	AO-070F	DN65	DN65	2451	1340	2598	97	53	103
RSXY-220	22	367	777	AO-080F	DN65	DN65	2451	1340	2598	97	53	103
RSXY-250	25	417	883	AO-080F	DN65	DN65	2451	1340	2598	97	53	103
RSXY-350	35	584	1236	AO-090F	DN80	DN65	2882	1378	2605	114	55	103
RSXY-450	45	750	1589	AO-100F	DN100	DN65	2899	1525	2717	115	61	107
RSXY-500	50	834	1766	AO-100F	DN100	DN65	2899	1525	2717	115	61	107
RSXY-600	60	1000	2119	AO-100F	DN100	DN65	3022	1568	2717	119	62	107

* Rated inlet pressure 7barg, inlet temperature 180℃~200℃, cooling water temperature 32℃, dew point -40℃.

Equipped with oil-free centrifugal compressor

model number	Capacity			Post-filter (recommended)	Caliber (Air)	Caliber (cooling water)	Size
	Capacity			Post-filter (recommended)	Caliber (Air)	Caliber (cooling water)	mm			inch
	Nm³/min	l/s	cfm	1μm	G / PN	G / PN	length	wide	high	length	wide	high
RSXY-700	70	1167	2472	AO-110F	DN125	DN65	3710	1878	2813	147	74	111
RSXY-800	80	1334	2825	AO-110F	DN125	DN65	3710	1878	2813	147	74	111
RSXY-900	90	1500	3178	AO-120F	DN150	DN80	4160	2063	2975	164	82	118
RSXY-1000	100	1667	3531	AO-120F	DN150	DN80	4160	2063	2975	164	82	118
RSXY-1200	120	2000	4238	AO-120F	DN150	DN80	4160	2063	2975	164	82	118
RSXY-1500	150	2500	5297	AO-130F	DN200	DN80	4800	2500	2909	189	99	115
RSXY-1800	180	3000	6356	AO-140F	DN200	DN125	5400	2843	3409	213	112	135
RSXY-2000	200	3334	7062	AO-140F	DN200	DN125	5400	2843	3409	213	112	135
RSXY-2500	250	4167	8828	AO-150F	DN200	DN125	5400	2843	3409	213	112	135

* Rated inlet pressure 7barg, inlet temperature >110℃, cooling water temperature 32℃, dew point -20℃.

RSXY series compression heat regeneration dryer selection correction
Pressure correction factor (KA)

5 barg	6 barg	7 barg	8 barg	9 barg	10 barg
0.75	0.87	1.00	1.13	1.25	1.38

Inlet temperature correction factor (KB)

25℃	30℃	32℃	35℃
1.48	1.12	1	0.85

Actual nominal volume flow rate = Selected flow rate × KA × KC'
If there is a demand for higher pressure, flow rate, etc., please feel free to inquire.

rated condition

work pressure ： 0.7MPag / 100psig
inlet temperature： 180 °C / 365 °F
Cooling water temperature ： 32°C / 90 °F

Scope of work

Maximum working pressure ： 1.0MPag / 145psig
Maximum inlet temperature ： 200°C / 392 °F
PDP： -20°C(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)(screw compressors) -40°C (centrifugal compressors)v

Available options

Higher pressures above 1.0Mpag / 145psig
Pressurized heaters
Higher capacity
Stainless steel vessels or piping
GB, ASME, PED and other containers
Zero loss fuel consumption

Other Products

Specialized energy saving services for pressurized air systems

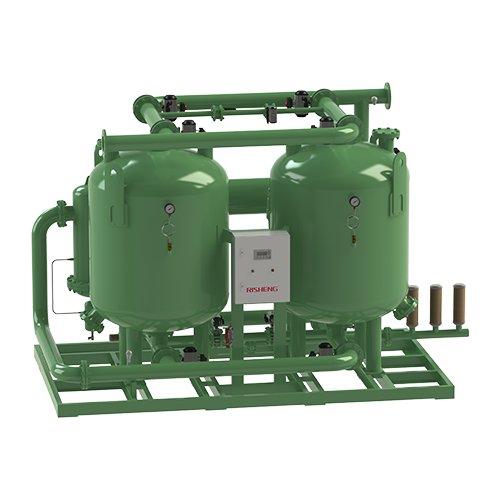

RSXB-ZP Series Zero Air Consumption Blast Air Heating Regeneration Adsorption Desiccator

The RSXB series of blast air heated regenerative adsorption dryers use highly efficient and durable, low power consumption blowers and heaters to thermally regenerate the adsorbent at high temperatures using ambient air without consuming the finished drying air in the dryer system.The RSXB series of blast air heated regenerative adsorption dryers utilize heat-resistant ball and butterfly valves with PPL seals and stainless steel internal materials. All valves are tested according to Risheng strict requirements. The RSXB series of blast heated regenerative adsorption dryers are designed for a constant pressure dew point of -40°C (pressure dew point -70°C optional).

Explore more

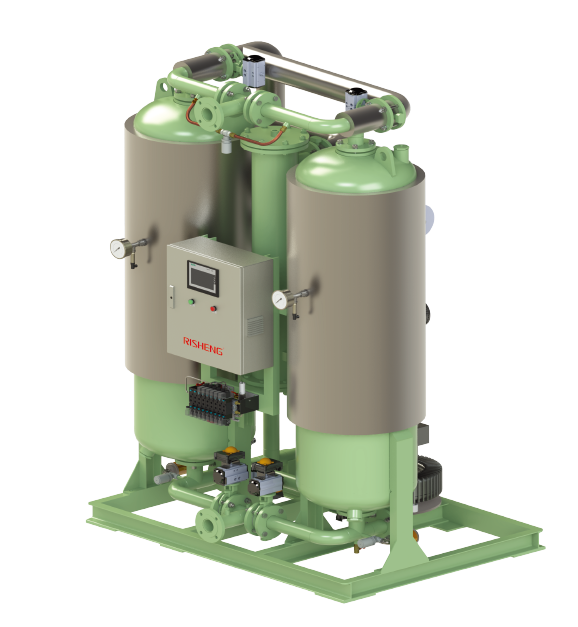

RSXB Series Micro Air Consumption Blast Heating and Regeneration Adsorption Desiccator
