Product Advantages

Designed for constant -40°C pressure dew point

High efficiency and durability

No need to consume finished dry air

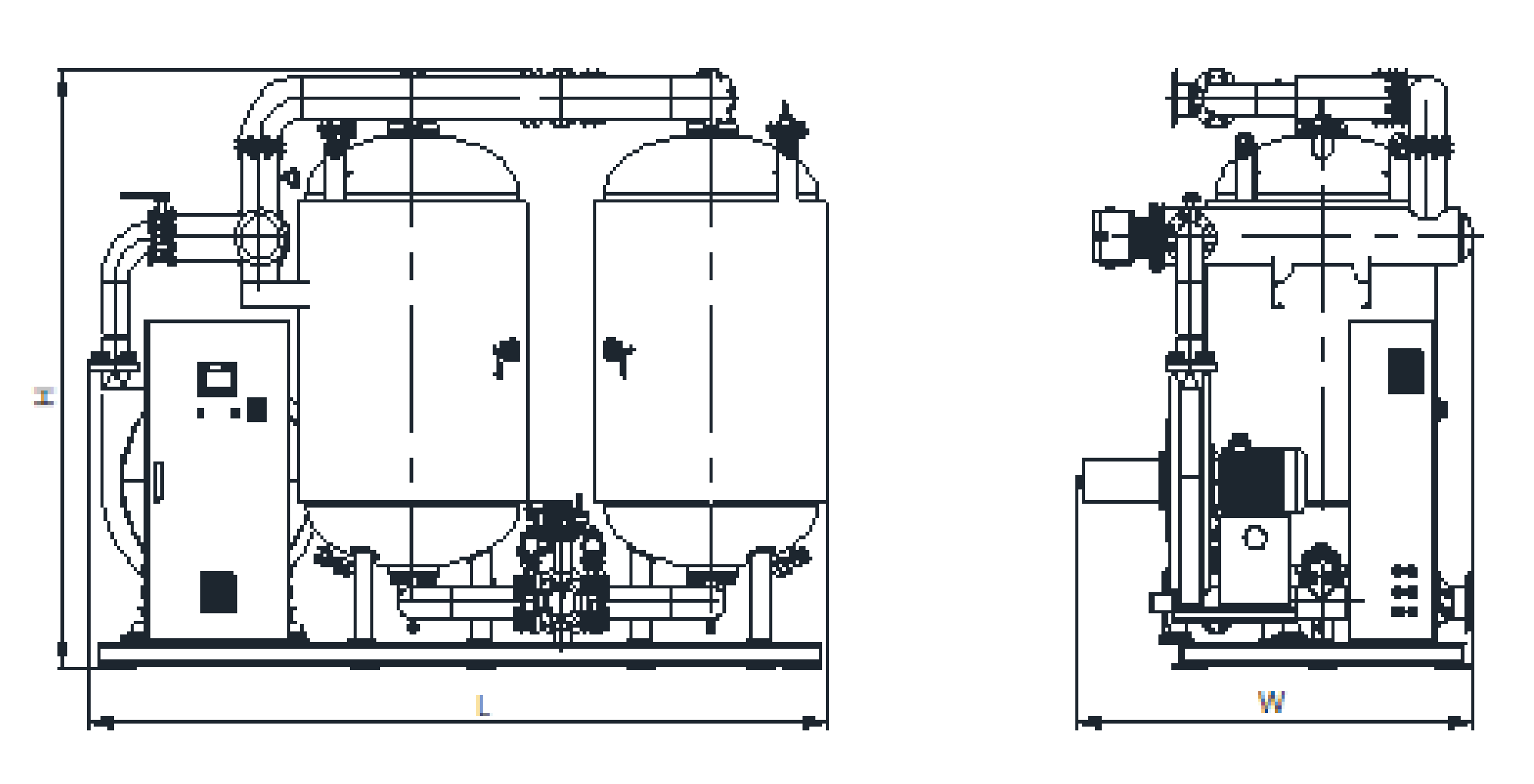

Technical specifications

model number	deal with			Filter (Recommended)			Caliber (air)	Caliber (cooling water)	size
	deal with			Pre-filter		Postfilter	Caliber (air)	Caliber (cooling water)	mm			inch
	Nm³/min	l/s	cfm	1μm	0.01μm	1μm	G / PN	G / PN	Length	Width	Height	Length	Width	Height
RSXB-180ZP	18	300	636	AO-070F	AA-070F	AO-070F	DN65	1" M	1750	1340	2598	69	53	103
RSXB-220ZP	22	367	777	AO-080F	AA-080F	AO-080F	DN65	1" M	1750	1340	2598	69	53	103
RSXB-250ZP	25	417	883	AO-080F	AA-080F	AO-080F	DN65	1" M	1750	1340	2598	69	53	103
RSXB-330ZP	33	550	1166	AO-090F	AA-090F	AO-090F	DN80	1" M	1952	1536	2585	77	61	102
RSXB-440ZP	44	734	1554	AO-100F	AA-100F	AO-100F	DN100	2" M	2310	1879	2717	91	74	107
RSXB-500ZP	50	834	1766	AO-100F	AA-100F	AO-100F	DN100	2" M	2310	1879	2717	91	74	107
RSXB-600ZP	60	1000	2119	AO-100F	AA-100F	AO-100F	DN100	2" M	2511	1961	2717	99	78	107
RSXB-700ZP	70	1167	2472	AO-110F	AA-110F	AO-110F	DN125	2" M	3932	2107	2818	155	83	111
RSXB-800ZP	80	1334	2825	AO-110F	AA-110F	AO-110F	DN125	2" M	3932	2107	2818	155	83	111
RSXB-900ZP	90	1500	3178	AO-120F	AA-120F	AO-120F	DN150	2" M	4302	2325	2974	170	92	118
RSXB-1000ZP	100	1667	3531	AO-120F	AA-120F	AO-120F	DN150	2" M	4302	2325	2974	170	92	118
RSXB-1200ZP	120	2000	4238	AO-120F	AA-120F	AO-120F	DN150	2" M	4406	2347	2974	174	93	118
RSXB-1500ZP	150	2500	5297	AO-130F	AA-130F	AO-130F	DN200	2" M	5273	2757	2909	208	109	115
RSXB-2000ZP	200	3334	7062	AO-140F	AA-140F	AO-140F	DN200	2" M	5596	2822	3409	221	112	135
RSXB-2500ZP	250	4167	8828	AO-150F	AA-150F	AO-150F	DN200	2" M	5596	2822	3409	221	112	135

RSXB Series Blast Air Heating Regeneration Dryer Selection Correction

Pressure correction factor（KA）

5 barg	6 barg	7 barg	8 barg	9 barg	10 barg
0.75	0.87	1.00	1.13	1.25	1.38

Inlet temperature correction factor（KB）

35℃	38℃	40℃	42℃	45℃
1.18	1.00	0.90	0.81	0.69

Actual Flow = Air Flow at Nominal Conditions x KAx KB

For higher pressures, flow rates, and lower dew points (-70°C), consult the factory.

consult factory

rated condition

work pressure：0.7MPag / 100psig
inlet temperature： 38°C / 90°F
Cooling water temperature： 32 °C / 100°F
Consumption temperature（PDP）：-40°C / -40°F

Scope of work

Maximum working pressure: 1.0MPag / 145psig
Maximum inlet temperature: 45°C / 113°F
Maximum cooling water temperature: 35°C / 95°F

usability

Higher pressures above 1.0MPag / 145psig
PDP -20°C / -4°F &-70°C / -100°F
Higher capacity
Stainless steel vessels or piping
GB, ASME, PED and other containers

Other Products

Specialized energy saving services for pressurized air systems

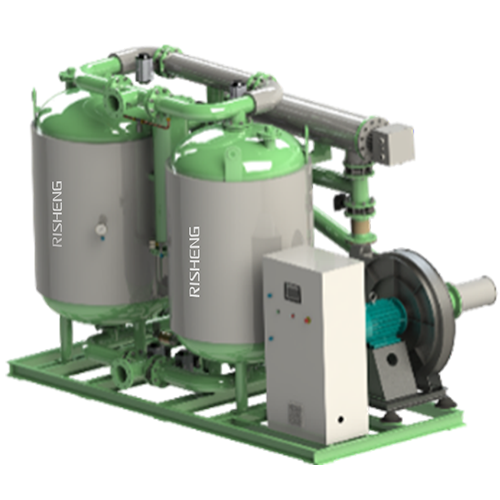

RSXB Series Micro Air Consumption Blast Heating and Regeneration Adsorption Desiccator

The RSXB series of blast air heated regenerative adsorption dryers use highly efficient and durable, low power consumption blowers and heaters to thermally regenerate the adsorbent at high temperatures using ambient air without consuming the finished drying air in the dryer system.The RSXB series of blast air heated regenerative adsorption dryers utilize heat-resistant ball and butterfly valves with PPL seals and stainless steel internal materials. All valves are tested according to Jih-Sun's strict requirements. The RSXB series of blast heated regenerative adsorption dryers are designed for a constant pressure dew point of -40°C (pressure dew point -70°C optional).
