Product Advantages

Designed for constant -40°C pressure dew point

High efficiency and durability

Does not consume finished dry air

Technical specifications

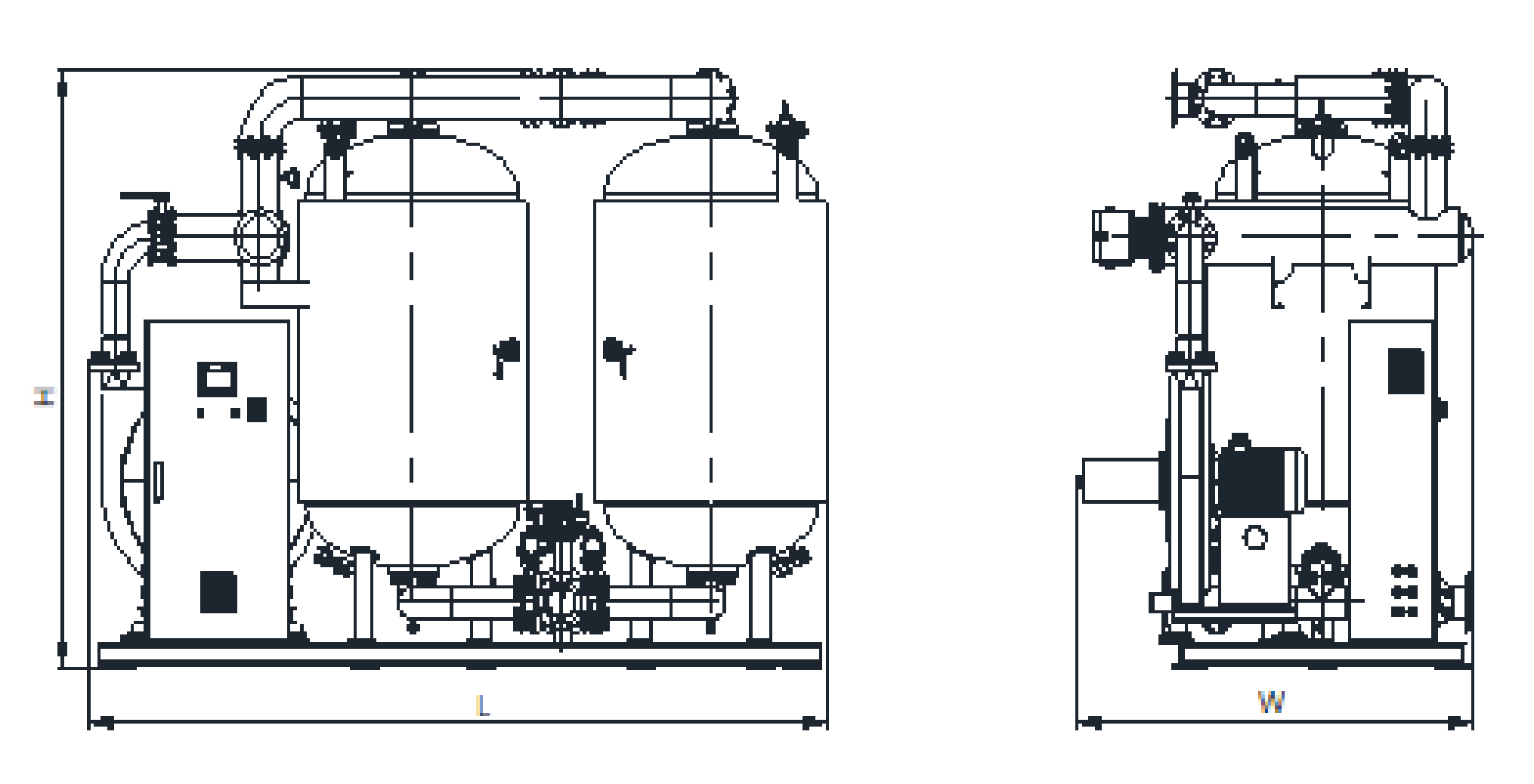

model number	capacity			filter (recommended)			caliber	dimensions
	capacity			pre-filter		post-filter	caliber	mm			inch
	Nm³/min	l/s	cfm	1μm	0.01μm	1μm	G / PN	length	width	height	length	width	height
RSXB-150	15	250	530	AO-070F	AA-070F	AO-070F	DN50	1550	856	2396	62	34	95
RSXB-180	18	300	636	AO-070F	AA-070F	AO-070F	DN65	1750	930	2605	69	37	103
RSXB-220	22	367	777	AO-080F	AA-080F	AO-080F	DN65	1750	930	2605	69	37	103
RSXB-250	25	417	883	AO-080F	AA-080F	AO-080F	DN65	1750	930	2605	69	37	103
RSXB-330	33	550	1166	AO-090F	AA-090F	AO-090F	DN80	1952	1102	2595	77	44	103
RSXB-440	44	734	1554	AO-100F	AA-100F	AO-100F	DN100	2310	1623	2717	91	64	107
RSXB-500	50	834	1766	AO-100F	AA-100F	AO-100F	DN100	2310	1657	2717	91	66	107
RSXB-600	60	1000	2119	AO-100F	AA-100F	AO-100F	DN100	2511	1764	2717	99	70	107
RSXB-700	70	1167	2472	AO-110F	AA-110F	AO-110F	DN125	2672	1662	2813	106	66	111
RSXB-800	80	1334	2825	AO-110F	AA-110F	AO-110F	DN125	2672	1662	2813	106	66	111
RSXB-900	90	1500	3178	AO-120F	AA-120F	AO-120F	DN150	4154	2200	2974	164	87	118
RSXB-1000	100	1667	3531	AO-120F	AA-120F	AO-120F	DN150	4154	2200	2974	164	87	118
RSXB-1200	120	2000	4238	AO-120F	AA-120F	AO-120F	DN150	4154	2347	2974	164	93	118
RSXB-1500	150	2500	5297	AO-130F	AA-130F	AO-130F	DN200	5311	2489	2909	210	98	115
RSXB-2000	200	3334	7062	AO-140F	AA-140F	AO-140F	DN200	5596	2822	3409	221	112	135
RSXB-2500	250	4167	8828	AO-150F	AA-150F	AO-150F	DN200	5596	2822	3409	221	112	135

RSXB Series Blast Air Heating Regeneration Dryer Selection Correction

Pressure correction factor（KA）

5 barg	6 barg	7 barg	8 barg	9 barg	10 barg
0.75	0.87	1.00	1.13	1.25	1.38

Inlet temperature correction factor（KB）

35℃	38℃	40℃	42℃	45℃
1.18	1.00	0.90	0.81	0.69

Actual Flow = Air Flow at Nominal Conditions x KAx KB

For higher pressures, flow rates, and lower dew points (-70°C),please consult the factory.

Rated conditions

Working pressure：0.7MPag / 100psig
Inlet temperature： 38°C / 90°F
Cooling water temperature： 32 °C / 100°F
Consumption temperature （PDP）：-40°C / -40°F

Scope of work

Maximum working pressure：1.0MPag / 145psig
Maximum inlet temperature： 45°C / 113°F
Maximum cooling water temperature：35°C / 95°F

Available options

Higher pressures above 1.0MPag / 145psig
Stainless steel vessels or piping
Higher capacity
GB, ASME, PED and other containers
